Energy Saving 50 Tons Paddy Dryer Machine with Batch Type Circulation and Low Temperature Drying for Various Grain Crops

Nombre De La Marca:	PAM
Número De Modelo:	PMD-50
Cantidad Mínima De Pedido:	1 juego
Precio:	USD 32500-38000 / set
Condiciones De Pago:	LC, T/T
Capacidad De Suministro:	100 juegos por mes

Información detallada

Descripción del Producto

Información detallada

Lugar de origen:

Porcelana

Certificación:

ISO

tipo:

Tipo de lote

Uso:

secado de granos

Condición:

Nuevo

Dimensión del cuerpo:

2850*2970*13700mm

Dimensión general:

5100*6321*14200mm

Fuerza:

15.3kw

Detalles de empaquetado:

Cajas de madera estándar de exportación.

Resaltar:

50 Tons Paddy Dryer Machine

Low Temperature Drying Grain Dryer Machine

Batch Type Circulation Batch Type Dryer

Descripción del Producto

Mix Flow Dryer Machine 50 Tons Features:

1. One machine multi-purpose, can dry rice, wheat, corn, peanuts, soybeans.Sorghum and other food crops and their seeds.

2. Forced dispersing device and quantitative feeding cycle of positive and negative grain discharge, thin layer and large air flow, uniform grain drying, high drying efficiency.

3. Low temperature drying, good quality rice, high germination rate of seeds.

4. Adopt large spiral feeder, high strength nylon dustpan, stainless steel net plate, wear-resisting, anti-deformation, durable and don't hurt grain.

5. Residual material cleaning device, easy to remove grain residual material, prevent mixing.

1. Product Description

The PMD series grain dryer is low temperature type circulation batch type grain dryer. The dryer machine is mainly used to dry rice, wheat, corn, soybean etc. The dryer machine is applicable to various combustion furnaces and coal, oil, firewood, straw of crops and husks can all be used as heat source. The machine is automatically controlled by computer. The drying process is dynamically automatic. Besides, the grain drying machine is equipped with automatic temperature measuring device and moisture detecting device, which greatly increase the automation and ensure the quality of the dried cereals. In addition to drying the paddy, wheat, it can also dry rapeseeds, buckwheat, corn, soybean, cottonseed, sunflower seeds, sorghum, mung bean and other seeds, as well as some rule grains and crops with good fluidity and moderate volume.

2. Features

1. Feeding and discharging grains from the top of dryer: Cancel the top auger, grain will directly flow to the drying part, avoid mechanical failure, lower power consumption and reduce the paddy broken rate;

2. The drying layer is combined by variable cross-section type angular boxes, mixed flow drying, high efficiency and uniform drying; Especially suitable for corn, parboiled rice and rapeseeds drying;

3. Resistance-type online moisture meter: Error rate is ±0.5 only (Deviation for raw paddy moisture is within 3% only), very accurate and reliable moisture meter;

4. The dryer comes with fully automatic computer controlling system, easy on operation, high automation;

5. The drying-layers adopt assembling mode, its strength is higher than the welding drying-layers, more convenient for maintenance and installation;

6. All the contact surfaces with grains in the drying-layers are designed with inclination, which can effectively offset the transverse force of grains, help to prolong the service life of the drying-layers;

7. The drying-layers has larger ventilation area, the drying is more uniform, and the utilization rate of hot air is significantly improved;

8. Twice dust removal function during drying process, the grains after drying are cleaner;

9. Multiple safety device, low failure rate, convenient on cleaning and long service time.

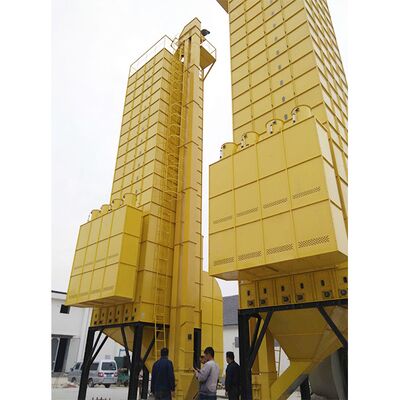

Energy Saving 50 Tons Paddy Dryer Machine with Batch Type Circulation and Low Temperature Drying for Various Grain Crops 0

3. Technique Parameter

Model		PMD-50
Type		Batch type, Circulation, Low temperature, Mix-flow
Volume(t)		30.0(Based on paddy 560kg/m3)
		31.5(Based on maize 690kg/m3)
		31.5(Based on rapeseeds 690kg/m3)
Overall dimension(mm)(L×W×H)		7350×3721×14200
Structure weight(kg)		6450
Hot air source		Burner (diesel or natural gas); Hot air furnace (coal, husk, straw, biomass, etc.); Boiler (steam or thermal oil).
Blower motor(kw)		11.0
Total power of motors(kw)/ Voltage(v)		15.3/380
Time of feeding(min)	Paddy	54~64
	Maize	55~65
	Rapeseeds	60~70
Time of discharging(min)	Paddy	50~60
	Maize	51~61
	Rapeseeds	57~67
Moisture reduction rate	Paddy	0.4~1.0% per hour
	Maize	1.0~2.0% per hour
	Rapeseeds	0.4~1.2% per hour
Automatic control and safety device		Automatic moisture meter, automatic ignition, automatic stop, temperature control device, fault alarm device, full grain alarm device, electrical overload protection device, leakage protection device

4. Why Choose Us?
1.For more than a decade, with its excellent production technology and high-quality after-sales service, it has always been recognized and loved by users.
2.Obtained many official promotion appraisals and won many national patents. The technology is continuously updated, the products are mature and reliable, and the technology always leads.
3.High oil output, clean and pure oil, good market efficiency. Original automation, intelligent technology, automatic electronic temperature control function, energy saving and high efficiency.
4.Original automation, intelligent technology, automatic electronic temperature control function, energy saving and high efficiency.
5.Presun Agro can provide a full set of technical support and perfect after-sales service, which is the first choice of urban and rural oil mills and small and medium-sized refineries.

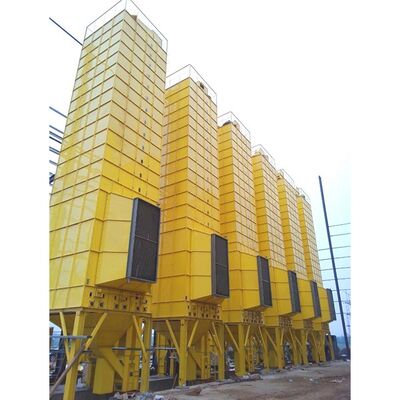

Energy Saving 50 Tons Paddy Dryer Machine with Batch Type Circulation and Low Temperature Drying for Various Grain Crops 1
