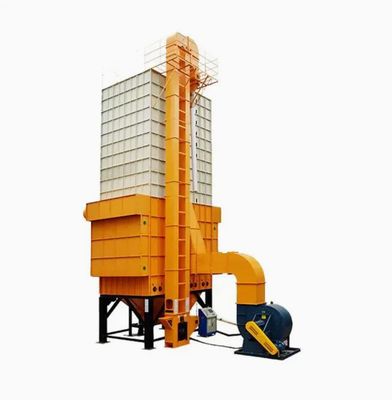

Batch Type Corn Dryer Machine 32 Tons Capacity with 10000-14000 m3/h Air Consumption and 21.7kw Power
| Lugar de origen | PORCELANA |
|---|---|
| Nombre de la marca | PRESUN |
| Certificación | ISO |
| Número de modelo | 5HPX-30 |
| Cantidad de orden mínima | 1 conjunto |
| Detalles de empaquetado | Cajas de madera de exportación estándar |
| Tiempo de entrega | 5-8 días laborables si ningunas piezas del arreglo para requisitos particulares |
| Condiciones de pago | L/C, T/T |
| Capacidad de la fuente | 100 conjuntos por mes |
Póngase en contacto conmigo para muestras y cupones gratis.
WhatsApp:0086 18588475571
- ¿ Qué es eso?: 0086 18588475571
¿ Qué pasa?: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Tipo | Tipo de lote | Uso | secado de granos |
|---|---|---|---|
| Condición | Nuevo | Dimensión del cuerpo | 2900*2260*12700m m |
| Consumo de aire | 10000-14000 m3/h | Fuerza | 21.7kw |
| Resaltar | batch type corn dryer machine,32 ton maize paddy dryer,wheat dryer machine with warranty |
||
Descripción de producto
Ideal for Drying Small Capacities and Different Varieties of Grains.
In many areas, the amount of harvested paddy varies between the different seasons. In addition, within one season a constant supply of the same paddy quality is rare. This situation leads to difficulties for plant managers to plan ahead for a continuous drying process where always full capacity is required. Therefore, a batch dryer is an ideal alternative solution to dry only a small amount of rice of the same type whenever it comes from the field.
How Did Dryer Machine Works?
1) Our dryer need one fuel burner to supply hot air goes into the dryer to remove the moisture on the grains's surface
2) After short time drying,grains would be circulating through the elevator,we call it "tempering zoon"to let the moisture inside the kernal to escape
3) When the moisture inside the kernal already escaped to the surface,it would drying again,then continue the process,temerping again
4) The drying time compare to tempering time would be around 1:5,so there's no additional damage or crack for the raw grains
5) Have online moisture meter to test and record the present moisture,would automatically shut down when reach the target
6) Lots of heating resources could be choosen,such as diesel,gas,coal,biomass material,each options are determind by clients request
Technical Parameters
| Model | 5HPX-30 |
| Loading capacity | 30Tons |
| Dimension | 2900*2260*12700mm |
| Drying Type | Low Temperature circulating Type |
| Power For Fan | 5.5KW |
| Drying Rate | 0.6~1.4% |
| Heat Consumption | <30,000 KCalorie |
| Weight | 6,500KG |
| Standard Device | Moisture Meter,Conveyor,Fan |

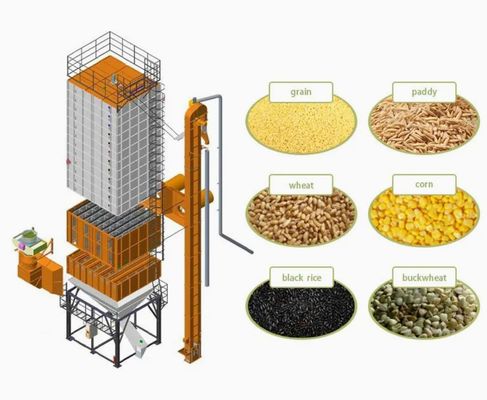

What's The Drying Plant Looks Like?
Details
What We Can Offer
1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season
